Unser Unternehmen legt großen Wert auf Investitionen in techno logische Innovation und Produkt suche und Entwicklung

Monte-Bianco

Leistungs tabelle

NdFeB Smco Ferrit
Kategorie Note Simpl iedGrade Br Hcb Hcj (BH)max TwL/D = 0,7 Hk/Hcj
T KGs Aufmerksamkeit KOe Aufmerksamkeit KOe KJ/pl MGOe ℃ %
N S-NdFeB-430/88 N54 1,45-1,48 14.5-14.8 ≥ 836 ≥ 10,5 ≥ 875 ≥ 11 406-438 51-55 80 ≥ 95
S-NdFeB-415/96 N52 1,42-1,45 14.2-14,5 ≥ 836 ≥ 10,5 ≥ 960 ≥ 12 390-422 49-53 80 ≥ 95
S-NdFeB-400/96 N50 1,39-1,42 13.9-14.2 ≥ 836 ≥ 10,5 ≥ 960 ≥ 12 374-406 47-51 80 ≥ 95
S-NdFeB-380/96 N48 1.37-13.9 13.7-13.9 ≥ 836 ≥ 10,5 ≥ 960 ≥ 12 358-390 45-49 80 ≥ 95
S-NdFeB-360/96 N45 1.33-1.37 13.3-13.7 ≥ 860 ≥ 10,8 ≥ 960 ≥ 12 342-366 43-46 80 ≥ 95
S-NdFeB-335/96 N42 1.29-1.33 12.9-13.3 ≥ 860 ≥ 10,8 ≥ 960 ≥ 12 318-342 40-43 80 ≥ 95
S-NdFeB-320/96 N40 1.26-1.29 12.6-12.9 ≥ 860 ≥ 10,8 ≥ 960 ≥ 12 302-326 38-41 80 ≥ 95
S-NdFeB-300/96 N38 1,23-1,26 12.3-12.6 ≥ 860 ≥ 10,8 ≥ 960 ≥ 12 287-310 36-39 80 ≥ 95
S-NdFeB-280/96 N35 1.18-1.23 11.8-12.3 ≥ 860 ≥ 10,8 ≥ 960 ≥ 12 263-287 33-36 80 ≥ 95
S-NdFeB-260/96 N33 1.14-1.18 11.4-11.8 ≥ 816 ≥ 10,3 ≥ 960 ≥ 12 247-263 31-33 80 ≥ 95
S-NdFeB-240/96 N30 1,08-1,14 10.8-11.4 ≥ 756 ≥ 9.5 ≥ 960 ≥ 12 223-247 28-31 80 ≥ 95
M S-NdFeB-430/104 N54M 1,45-1,48 14.5-14.8 ≥ 995 ≥ 12.5 ≥ 1035 ≥ 13 415-438 51-54 100 ≥ 95
S-NdFeB-415/104 N52M 1,42-1,45 14.2-14,5 ≥ 995 ≥ 12.5 ≥ 1035 ≥ 13 390-422 49-53 100 ≥ 95
S-NdFeB-400/111 N50M 1,39-1,42 13.9-14.2 ≥ 1035 ≥ 13,0 ≥ 1114 ≥ 14 374-406 47-51 100 ≥ 95
S-NdFeB-380/111 N48M 1.37-13.9 13.7-14.0 ≥ 1012 ≥ 12,7 ≥ 1114 ≥ 14 358-390 45-49 100 ≥ 95
S-NdFeB-360/111 N45M 1.33-1.37 13.3-13.7 ≥ 971 ≥ 12,2 ≥ 1114 ≥ 14 342-366 43-46 100 ≥ 95
S-NdFeB-335/111 N42M 1.29-1.33 12.9-13.3 ≥ 938 ≥ 11,8 ≥ 1114 ≥ 14 318-342 40-43 100 ≥ 95
S-NdFeB-320/111 N40M 1.26-1.29 12.6-12.9 ≥ 910 ≥ 11,4 ≥ 1114 ≥ 14 302-326 38-41 100 ≥ 95
S-NdFeB-300/111 N38M 1,23-1,26 12.3-12.6 ≥ 876 ≥ 11.0 ≥ 1114 ≥ 14 287-310 36-39 100 ≥ 95
S-NdFeB-280/111 N35M 1.18-1.23 11.8-12.3 ≥ 860 ≥ 10,8 ≥ 1114 ≥ 14 263-287 33-36 100 ≥ 95
S-NdFeB-260/111 N33M 1.14-1.18 11.4-11.8 ≥ 816 ≥ 10,3 ≥ 1114 ≥ 14 223-247 28-31 100 ≥ 95
S-NdFeB-240/111 N30M 1,08-1,14 10.8-11.4 ≥ 756 ≥ 9.5 ≥ 1114 ≥ 14 223-239 28-31 100 ≥ 95
H S-NdFeB-430/127 N54H 1,45-1,48 14.5-14.8 ≥ 1070 ≥ 13,4 ≥ 1354 ≥ 17 415-438 51-54 120 ≥ 90
S-NdFeB-415/127 N52H 1,42-1,45 14.2-14,5 ≥ 1070 ≥ 13,4 ≥ 1354 ≥ 17 389-415 49-53 120 ≥ 90
S-NdFeB-400/127 N50H 1,39-1,42 13.9-14.2 ≥ 1035 ≥ 13,0 ≥ 1274 ≥ 16 374-406 47-51 120 ≥ 95
S-NdFeB-380/127 N48H 1.37-13.9 13.7-14.0 ≥ 1000 ≥ 12,8 ≥ 1274 ≥ 16 358-390 45-49 120 ≥ 95
S-NdFeB-360/135 N45H 1.33-1.37 13.3-13.7 ≥ 995 ≥ 12.5 ≥ 1353 ≥ 17 342-366 43-46 120 ≥ 95
S-NdFeB-335/135 N42H 1.29-1.33 12.9-13.3 ≥ 957 ≥ 12,0 ≥ 1353 ≥ 17 318-342 40-43 120 ≥ 95
S-NdFeB-320/135 N40H 1.26-1.29 12.6-12.9 ≥ 930 ≥ 11,7 ≥ 1353 ≥ 17 302-326 38-41 120 ≥ 95
S-NdFeB-300/135 N38H 1,23-1,26 12.3-12.6 ≥ 910 ≥ 11,4 ≥ 1353 ≥ 17 287-310 36-39 120 ≥ 95
S-NdFeB-280/135 N35H 1.18-1.23 11.8-12.3 ≥ 876 ≥ 11.0 ≥ 1353 ≥ 17 263-287 33-36 120 ≥ 95
S-NdFeB-260/135 N33H 1.14-1.18 11.4-11.8 ≥ 844 ≥ 10,6 ≥ 1353 ≥ 17 247-271 31-34 120 ≥ 95
S-NdFeB-240/135 N30H 1,08-1,14 10.8-11.4 ≥ 812 ≥ 10,2 ≥ 1353 ≥ 17 223-239 28-31 120 ≥ 95
SH S-NdFeB-430/151 N54SH 1,45-1,48 14.5-14.8 > 1106 ≥ 13,9 ≥ 1592 ≥ 20 415-438 51-54 150 ≥ 88
S-NdFeB-415/151 N52SH 1,42-1,45 14.2-14,5 ≥ 1067 ≥ 13,4 ≥ 1592 ≥ 20 389-415 49-53 150 ≥ 88
S-NdFeB-400/151 N50SH 1,39-1,42 13.9-14.2 ≥ 1051 ≥ 12,9 ≥ 1592 ≥ 19 374-406 47-51 150 ≥ 88
S-NdFeB-380/151 N48SH 1.37-13.9 13.7-13.9 ≥ 1035 ≥ 12,8 > 1512 ≥ 20 358-390 45-49 150 ≥ 90
S-NdFeB-360/159 N45SH 1.33-1.37 13.3-13.7 > 938 ≥ 11,8 ≥ 1592 ≥ 20 342-366 43-46 150 ≥ 90
S-NdFeB-335/159 N42SH 1.29-1.33 12.9-13.3 > 938 ≥ 11,8 ≥ 1592 ≥ 20 318-342 40-43 150 ≥ 90
S-NdFeB-320/159 N40SH 1.26-1.29 12.6-12.9 ≥ 912 ≥ 11.5 ≥ 1592 ≥ 20 302-326 38-41 150 ≥ 90
S-NdFeB-300/159 N38SH 1,23-1,26 12.3-12.6 ≥ 886 ≥ 11.1 ≥ 1592 ≥ 20 287-310 36-39 150 ≥ 90
S-NdFeB-280/159 N35SH 1.18-1.23 11.8-12.3 ≥ 876 ≥ 11.0 ≥ 1592 ≥ 20 263-287 33-36 150 ≥ 90
S-NdFeB-260/159 N33SH 1.14-1.18 11.4-11.8 ≥ 836 ≥ 10,5 ≥ 1592 ≥ 20 247-271 31-34 150 ≥ 90
S-NdFeB-240/159 N30SH 1,08-1,14 10.8-11.4 ≥ 756 ≥ 9.5 ≥ 1592 ≥ 20 223-239 28-31 150 ≥ 90
UH S-NdFeB-415/191 1,42-1,45 1,42-1,45 14.2-14,5 ≥ 1067 ≥ 13,4 ≥ 1990 ≥ 25 389-415 49-52 180 ≥ 86
S-NdFeB-400/191 1,39-1,42 1,39-1,42 13.9-14.2 ≥ 1051 ≥ 12,9 ≥ 1990 ≥ 25 374-406 47-51 180 ≥ 86
S-NdFeB-380/191 1.37-13.9 1.37-13.9 13.7-14.0 ≥ 1000 ≥ 12,8 ≥ 1990 ≥ 25 358-382 45-49 180 ≥ 86
S-NdFeB-360/191 1.33-1.37 1.33-1.37 13.3-13.7 ≥ 976 ≥ 12,2 ≥ 1911 ≥ 24 342-366 43-46 180 ≥ 90
S-NdFeB-335/199 1.29-1.33 1.29-1.33 12.9-13.3 ≥ 938 ≥ 11,8 ≥ 1990 ≥ 25 318-342 40-43 180 ≥ 90
S-NdFeB-320/199 1.26-1.29 1.26-1.29 12.6-12.9 ≥ 912 ≥ 11.5 ≥ 1990 ≥ 25 302-326 38-41 180 ≥ 90
S-NdFeB-300/199 1,23-1,26 1,23-1,26 12.3-12.6 ≥ 886 ≥ 11.1 ≥ 1990 ≥ 25 287-310 36-39 180 ≥ 90
S-NdFeB-280/199 1.18-1.23 1.18-1.23 11.8-12.3 ≥ 845 ≥ 10,6 ≥ 1990 ≥ 25 263-287 33-36 180 ≥ 90
S-NdFeB-260/199 1.14-1.18 1.14-1.18 11.4-11.8 ≥ 816 ≥ 10,3 ≥ 1990 ≥ 25 247-271 31-34 180 ≥ 90
S-NdFeB-240/199 1,08-1,14 1,08-1,14 10.8-11.4 ≥ 756 ≥ 9.5 ≥ 1990 ≥ 25 223-247 28-31 180 ≥ 90
  S-NdFeB-380/231 N48EH 1,37-1,40 13.7-14.0 ≥ 1000 ≥ 12,8 ≥ 2308 ≥ 30 358-382 45-49 200 ≥ 86
  S-NdFeB-360/231 N45EH 1,32-1,37 13.2-13.7 ≥ 976 ≥ 12,2 ≥ 2308 ≥ 30 342-358 42-45 200 ≥ 86
  S-NdFeB-335/231 N42EH 1.28-1.32 12.8-13.2 ≥ 971 ≥ 12,2 ≥ 2308 ≥ 29 318-342 39-43 200 ≥ 90
  S-NdFeB-320/239 N40EH 1.25-1.28 12, 5-12, 8 ≥ 947 ≥ 11,9 ≥ 2308 ≥ 30 303-326 37-41 200 ≥ 90
EH S-NdFeB-300/239 N38EH 1,22-1,25 12.2-12.5 ≥ 923 ≥ 11,6 ≥ 2308 ≥ 30 287-303 35-39 200 ≥ 90
  S-NdFeB-280/239 N35EH 1.18-1.22 11.8-12.2 ≥ 883 ≥ 11.1 ≥ 2308 ≥ 30 263-287 33-36 200 ≥ 90
  S-NdFeB-260/239 N33EH 1.14-1.18 11.4-11.8 ≥ 816 ≥ 10,3 ≥ 2308 ≥ 30 247-263 31-34 200 ≥ 90
  S-NdFeB-240/239 N30EH 1,08-1,14 10.8-11.4 ≥ 756 ≥ 9.5 ≥ 2308 ≥ 30 223-247 28-31 200 ≥ 90
  S-NdFeB-220/239 N28EH 1,05-1,08 10.5-10.8 ≥ 756 ≥ 9.5 ≥ 2308 ≥ 30 207-231 26-29 200 ≥ 90
TH S-NdFeB-335/263 N42TH 1.25-1.29 12.6-12.9 ≥ 971 ≥ 12,2 ≥ 2786 ≥ 35 318-342 40-43 220 ≥ 86
S-NdFeB-320/263 N40TH 1.25-1.29 12.6-12.9 ≥ 939 ≥ 11,8 ≥ 2786 ≥ 35 303-326 36-41 220 ≥ 86
S-NdFeB-300/279 N38TH 1,22-1,25 12.2-12.5 ≥ 923 ≥ 11,6 ≥ 2786 ≥ 35 279-310 35-39 220 ≥ 90
S-NdFeB-280/279 N35TH 1.18-1.22 11.8-12.2 ≥ 845 ≥ 10,6 ≥ 2786 ≥ 35 263-287 33-36 220 ≥ 90
S-NdFeB-260/279 N33TH 1.14-1.18 11.4-11.8 ≥ 816 ≥ 10,2 ≥ 2786 ≥ 35 247-271 31-34 220 ≥ 90
S-NdFeB-240/279 N30TH 1,08-1,14 10.8-11.4 ≥ 804 ≥ 10.1 ≥ 2786 ≥ 35 223-247 28-31 220 ≥ 90
S-NdFeB-220/279 N28TH 1,05-1,08 10.5-10.8 ≥ 756 ≥ 9.5 ≥ 2786 ≥ 35 207-231 26-29 220 ≥ 90

Ent magneti sierungs kurve

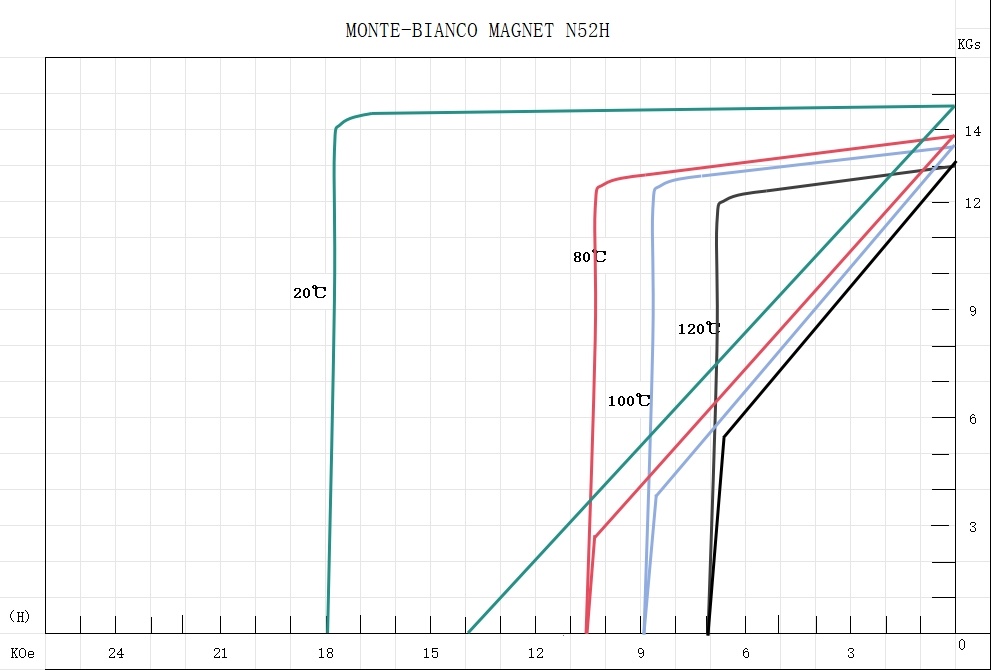

N52H

N52H

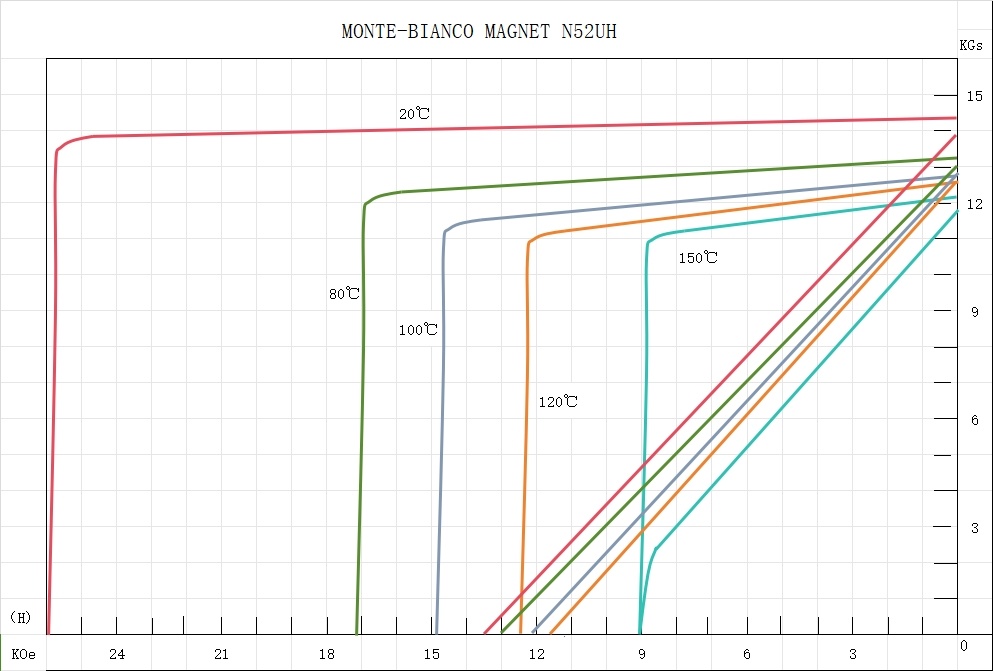

N52UH

N52UH

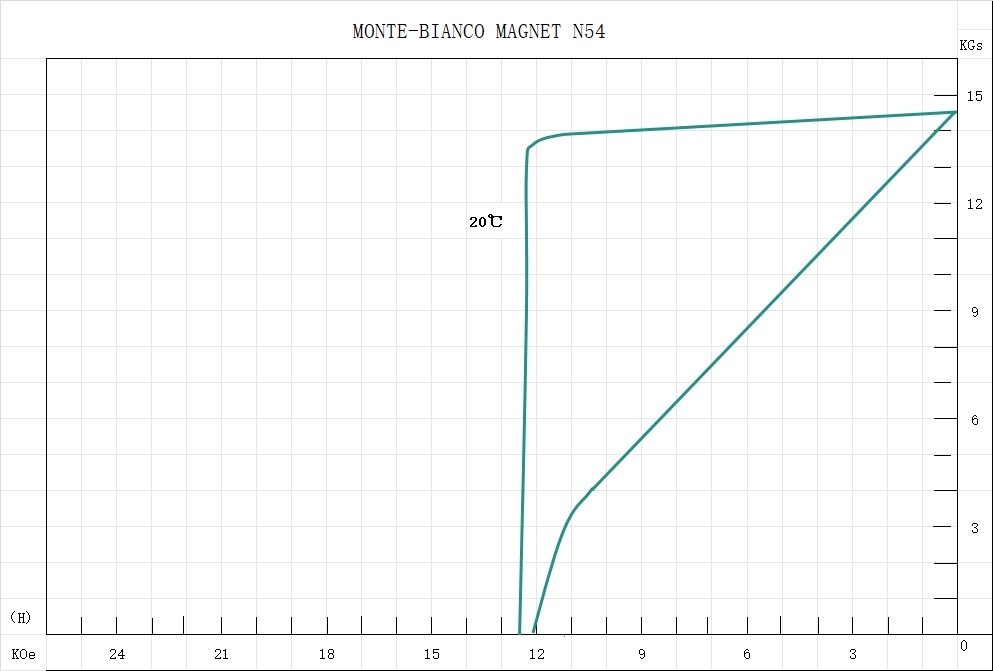

N54

N54

N40AH

N40AH

< 12 > 跳转到 页
Material Note Energie produkt (BH) max Rest induktion Br(min) Zierkraft Hcb (min) Intrinsische Zierkraft Hcj (min) Dichte D Rev Temp Coeff a (Br) Curie empTC Max Working lemp Tw
KJ/m3 MGOe T KGs Aufmerksamkeit KOe KAm K0e G/cm³ %/℃ ℃ ℃
SmCo5 und
Sm(Pr)Co		 YX-18 127-159 16-20 0, 82-0, 92 8.2 ~ 9.2 639-756 8.0-9.5 1194-1751 15,0-22,0 8.2-8.3 -0,04 ≥ 740 250
YX-20 143-175 18-22 0,87-0,95 8.7 ~ 9.5 639-756 8.0-9.5 1194-1751 15,0-22,0
YX-22 159-191 20-24 0, 93-1, 0 9.3-10.0 660-772 8,3 ~ 9,7 1194-1751 15,0-22,0
YX-24 175-207 22-26 0,96-1,04 9.6-10.4 660-780 8,3 ~ 9,8 1194-1751 15,0-22,0
Sm2Co17 YXG-24M 175-207 22-26 0,96-1,04 9.6-10.4 318-772 4.0-9.7 398-955 5.0-12.0
YXG-24 175-207 22-26 0,96-1,04 9.6-10.4 660-780 8,3 ~ 9,8 ≥ 1751 22
YXG-24H 175-207 22-26 0,96-1,04 9.6-10.4 660-780 8,3 ~ 9,8 ≥ 1990 25
YXG-26M 191-223 25-28 1.0-1.07 10.0-10.7 318-796 4.0-10.0 398-955 5.0-12.0 8.2-8.4 -0,03 ≥ 800 350
YXG-26 191-223 25-28 1.0-1.07 10.0-10.7 677-820 8.5-10.3 ≥ 1751 22
YXG-26H 191-223 25-28 1.0-1.07 10.0-10.7 677-820 8.5-10.3 ≥ 1990 25
YXG-28M 207-239 26-30 1,04-1,10 10.4-11.0 318-796 4.0-10.0 398-955 5.0-12.0
YXG-28 207-239 26-30 1,04-1,10 10.4-11.0 677-820 8.5-10.3 ≥ 1751 ≥ 22.0
YXG-28H 207-239 26-30 1,04-1,10 10.4-11.0 677-820 8.5-10.3 ≥ 1990 ≥ 25.0
YXG-30M 223-247 28-31 1,07-1,12 10.7-11.2 318-796 4.0-10.0 398-955 5.0-12.0
YXG-30 223-247 28-31 1,07-1,12 0,7-11,2 677-820 8.5-10.3 ≥ 1751 ≥ 22.0
YXG-32M 238-262 29-32 1,09-1,15 10.9-11.5 318-796 4.0-10.0 398-955 5.0-12.0
YXG-S32 238-262 29-32 1,09-1,15 10.9-11.5 677-820 8.5-10.3 ≥ 1592 ≥ 20,0
Low Temp Coef
Sm2Co17		 YX-22LT 159-191 20-24 0, 93-1, 0 9.3-10.0 677-756 8.5 ~ 9.5 ≥ 1194 ≥ 15,0 8.2-8.4 -0,01 ≥ 850 350
YX-24LT 175-207 22-26 0,96-1,04 9.6-10.4 677-756 8.5 ~ 9.5 ≥ 1194 ≥ 15,0
YX-26LT 191-223 25-28 1.0-1.07 10.0-10.7 677-812 8.5-10.2 ≥ 1433 ≥ 18,0 8.2-8.4 -0,02 ≥ 850 350

Ent magneti sierungs kurve

YXG-28H Ent magneti sierungs kurven bei unterschied lichen Temperaturen

YXG-28H Ent magneti sierungs kurven bei unterschied lichen Temperaturen

YXG-30H Ent magneti sierungs kurven bei unterschied lichen Temperaturen

YXG-30H Ent magneti sierungs kurven bei unterschied lichen Temperaturen

< 1 > 跳转到 页
Leistung Rest magnetismus Zwang Mit Zwangs kraft ausgestattet Maximales Energie produkt
Br(mT) Br(Gs) IR(s/s) BHe (0e) T(p) IHc (0e) (BH)max(Kj/m) (BH)max(MG0e)
Y10 200-235 2000-2350 125-160 1570-2010 210-280 2640-3520 6.5-9.5 0,8-1,2
Y25 360-400 3600-4000 135-170 1700-2140 140-200 1760-2510 22.5-28.0 2.8-3.5
Y30 370-400 3700-4000 175-210 2200-2640 180-220 2260-2770 26.0-30.0 3.3-3.8
Y30BH 380-400 3800-4000 230-275 2890-3460 235-290 2950-3650 27.0-32.5 3.4-4.1
Y33 410-430 4100-4300 220-250 2770-3140 225-255 2830-3210 31.5-35.0 4.0-4.4
Y35 400-420 4000-4200 160-190 2010-2380 165-195 2070-2450 30.0-33.5 3.8-4.2

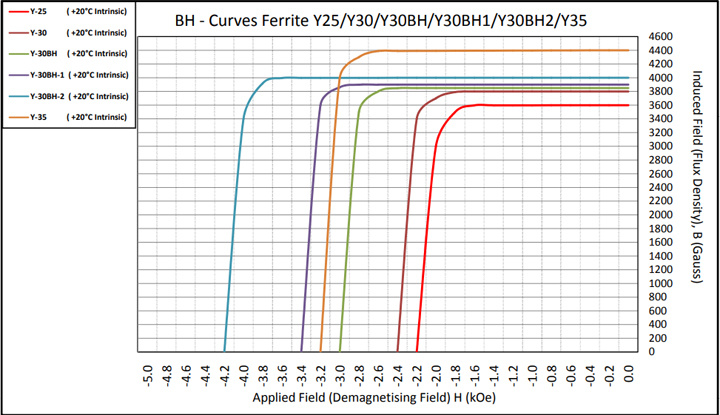

Ent magneti sierungs kurve

FRÜHE

FRÜHE

< 1 > 跳转到 页
